SINGLE ANTENNA DETECTION SYSTEM
Single Antenna System Overview
The SCAN~LINK Single Antenna Detection System uses passive RFID technology to alert equipment operators when a ground worker enters a hazard zone, helping reduce the risk of struck-by incidents.
Workers wearing SCAN~LINK safety apparel are detected automatically through embedded passive RFID tags, allowing any equipped machine to recognize nearby personnel across any jobsite. Each detection event is also recorded with time, date, and apparel ID, supporting ongoing safety analysis and improvement.

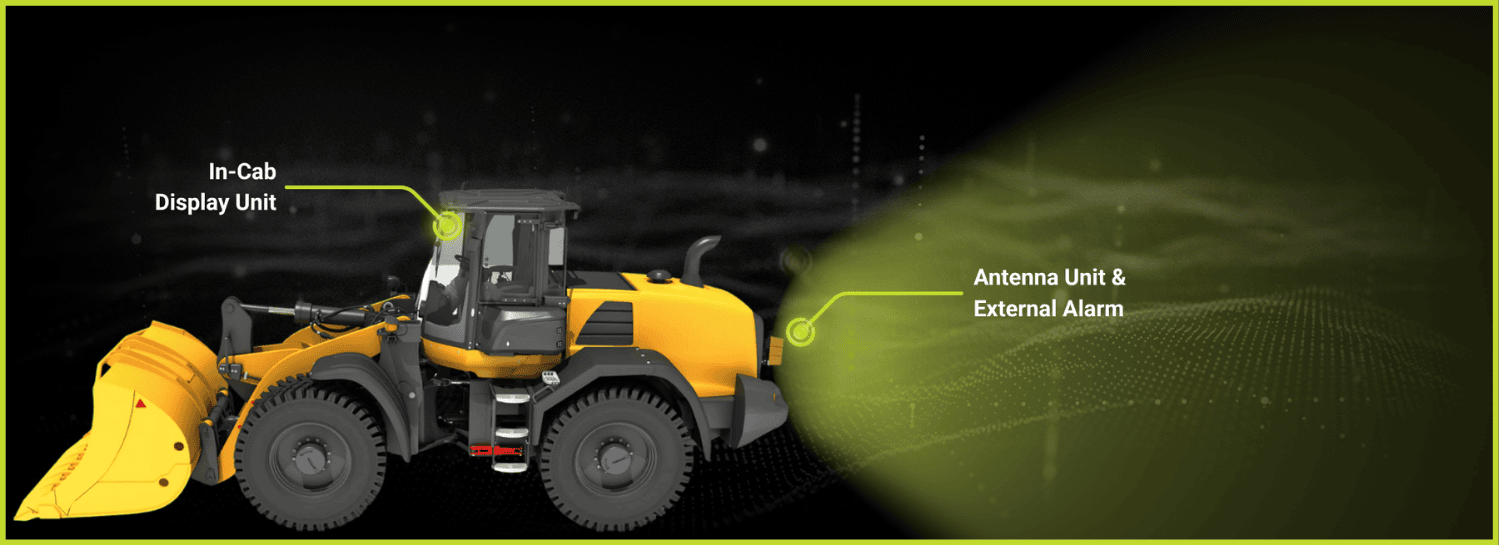

The system includes an antenna, in-cab display, external alarm, and mounting hardware, and is designed to deliver reliable, targeted detection for reversing and other high-risk equipment movements.

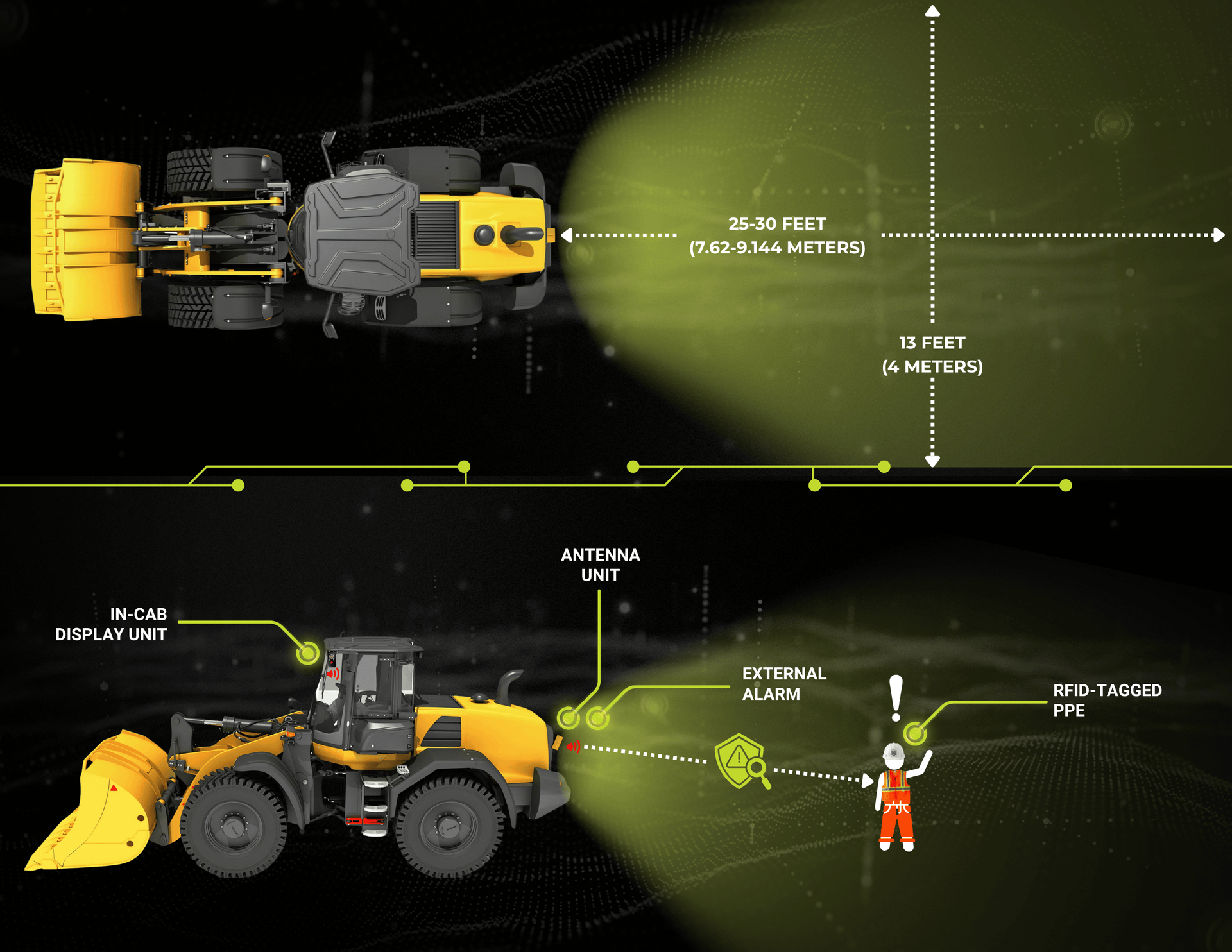

How does SCAN~LINK Work?
SCAN~LINK’s passive RFID system detects workers wearing RFID-tagged safety PPE and instantly alerts both operators and nearby personnel. This real-time warning helps prevent struck-by incidents, improves operator awareness, and keeps worksites safer.

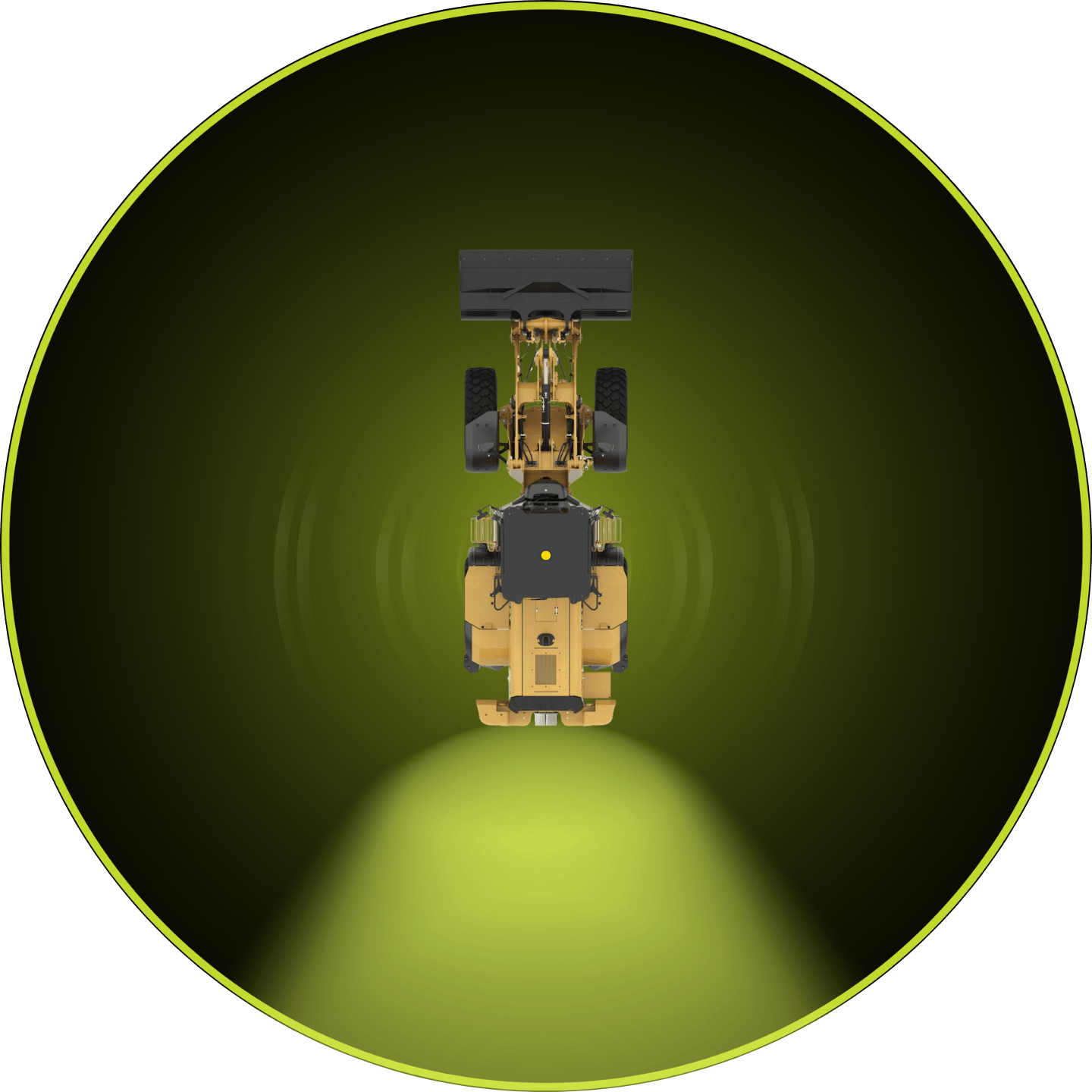

Single Detection Zone
The SCAN~LINK Single Antenna System creates a single detection zone around heavy equipment. This is ideal for monitoring blind spots when reversing to prevent back-up and struck-by incidents.
Workers wearing SCAN~LINK passive RFID safety apparel are immediately detected, alerting both the operator and ground worker, helping reduce struck-by risks and improve operator awareness.

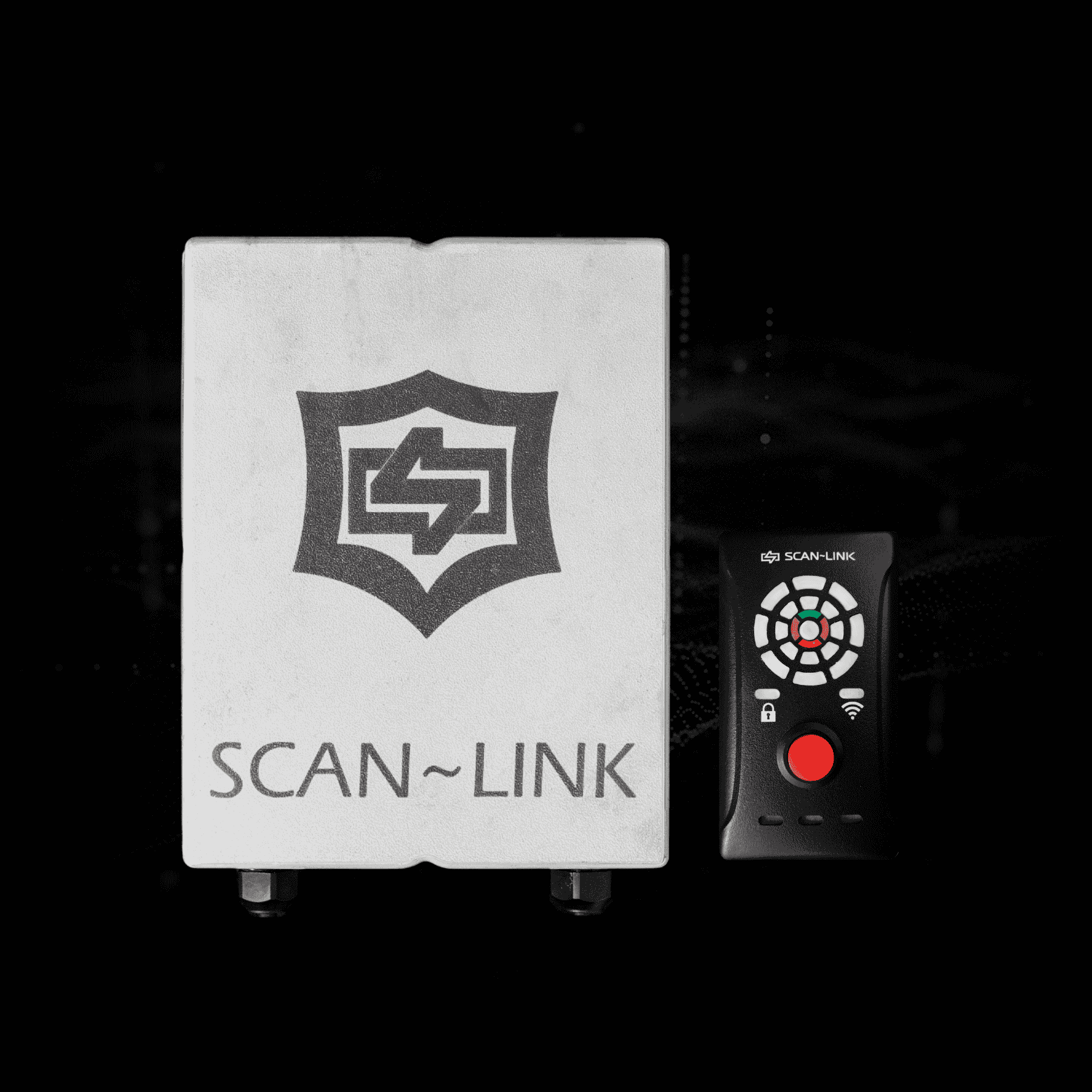

SINGLE ANTENNA SYSTEM COMPONENTS
ANTENNA

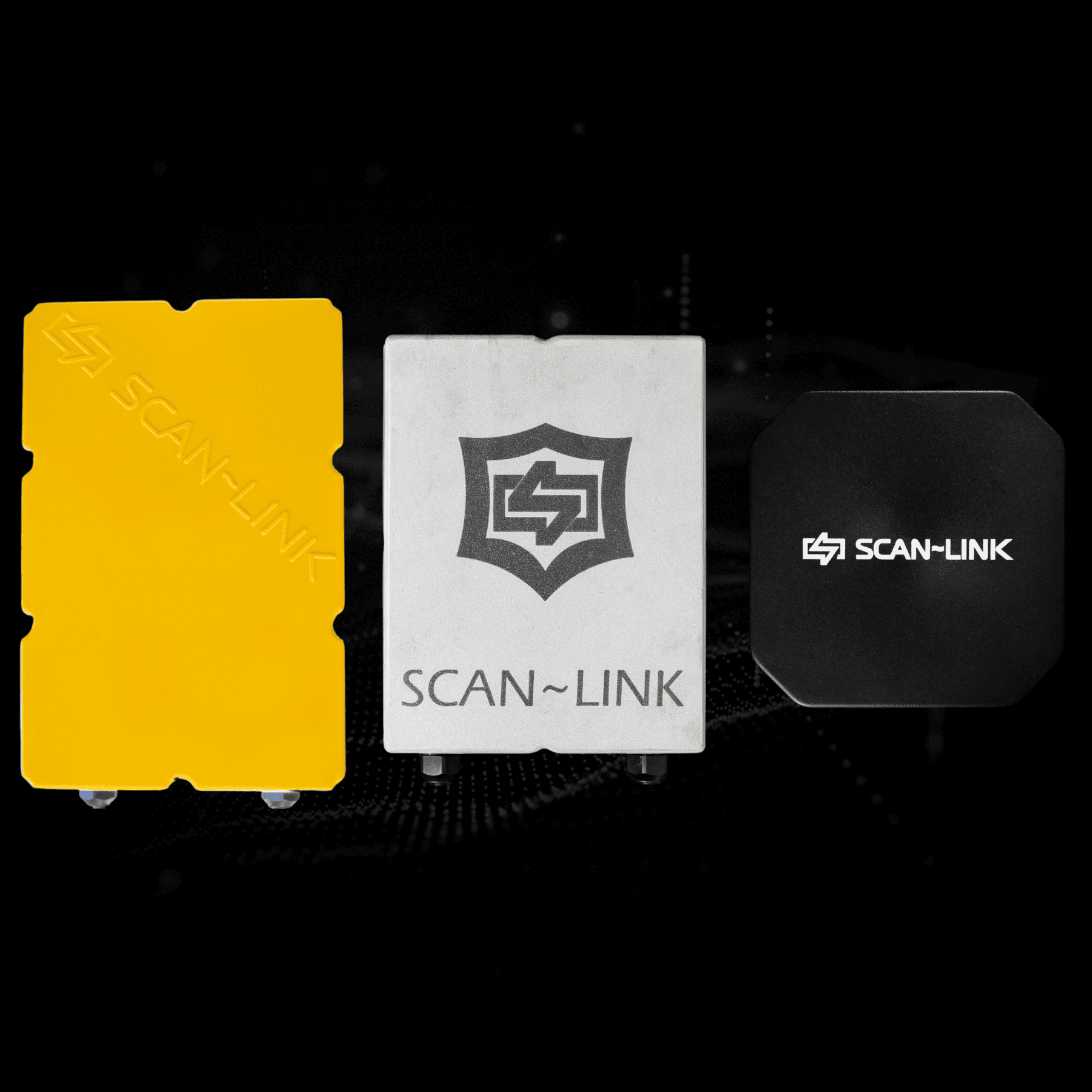

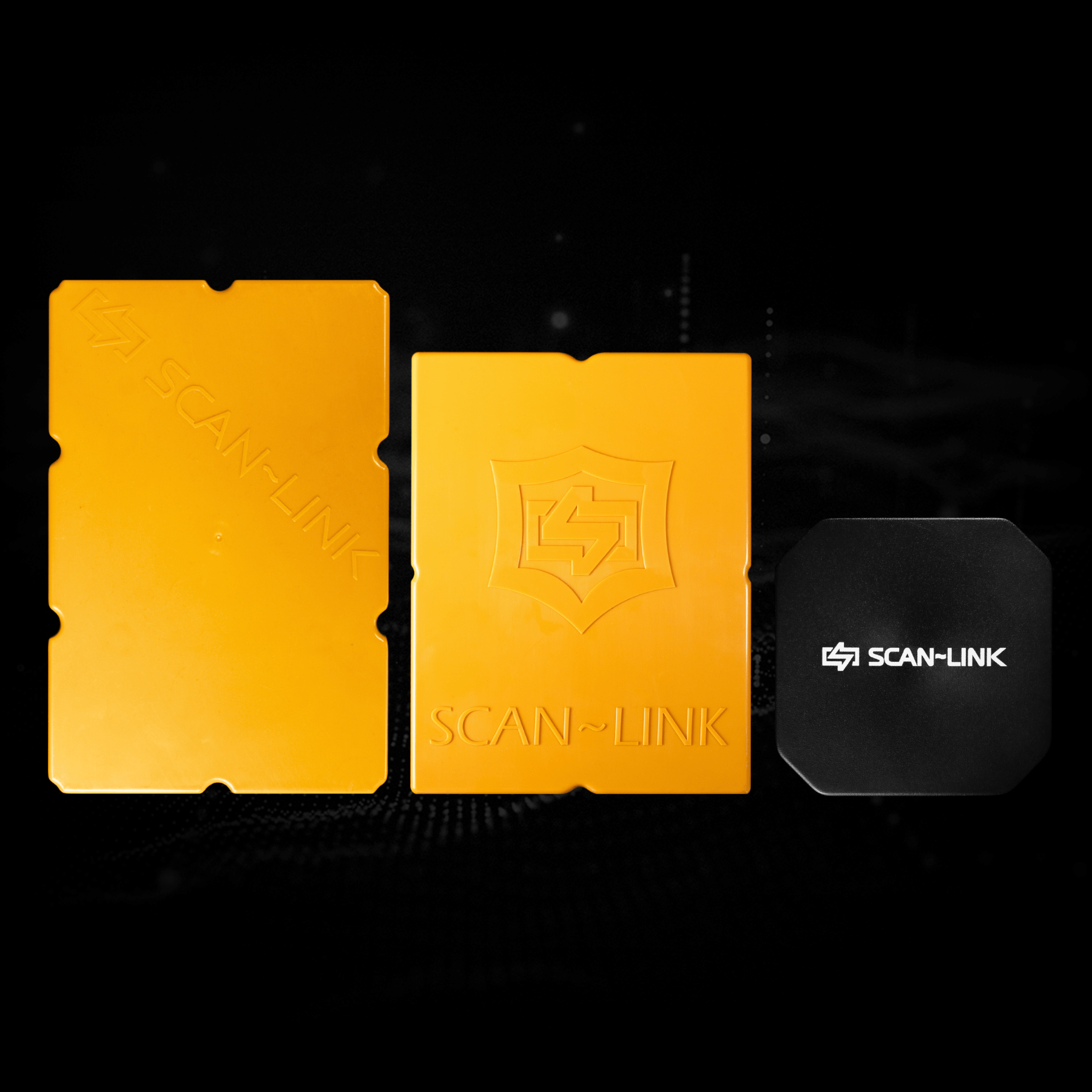

The 3.0 Armour System offers three different antenna options designed for flexibility, supporting extended range, customizable coverage, adjustable range, and full coverage detection. Each antenna delivers reliable performance in low light, dust, fog, rain, and harsh industrial environments.
Housed in rugged, weatherproof enclosures, SCAN~LINK antennas are built for reliable performance in harsh environments. Each antenna monitors designated detection zones, identifies workers wearing SCAN~LINK passive RFID safety apparel, and wirelessly communicates alerts to the in-cab display unit. Detection event data is also recorded and stored for analysis.
STANDARD ANTENNA
The Standard Antenna features a redesigned, compact form factor with enhanced passive RFID detection performance. Well suited for a wide range of equipment applications, it provides reliable and consistent worker detection across most jobsite environments.
SPECS
- Standard - SCAZ96-2 Class 2 Level 2 ANSI/BISCAY 107-2004
- BC Class 2 safety rated
- Each vest has a unique ID
- UHF Passive
- Sizes: M, L, XL
LONG RANGE ANTENNA
The Long Range Antenna builds on the proven enclosure of the 2.0 system, combined with upgraded 3.0 internal technology to deliver extended detection capabilities of 40+ feet. Ideal for larger equipment and applications requiring expanded safety zones.
SPECS
- Input Voltage +12VDC – +28VDC
- Typical Range: 20 feet / 6 meters
- Temperature Range: -20°C – +85°C / -4°F – +185°F
- Frequencies Available: 902.3 – 927.7MHz, 920 – 926MHz, 865.7 – 867.5MHz
COMPACT ANTENNA
The Compact Antenna is a smaller-format antenna designed to support full coverage detection and flexible multi-antenna configurations. Ideal for tight-clearance environments where space is limited but reliable detection is critical.
SPECS
- Standard - CSAZ96-02 Class 2 Level 2 ANSI/ISEA 107-0224

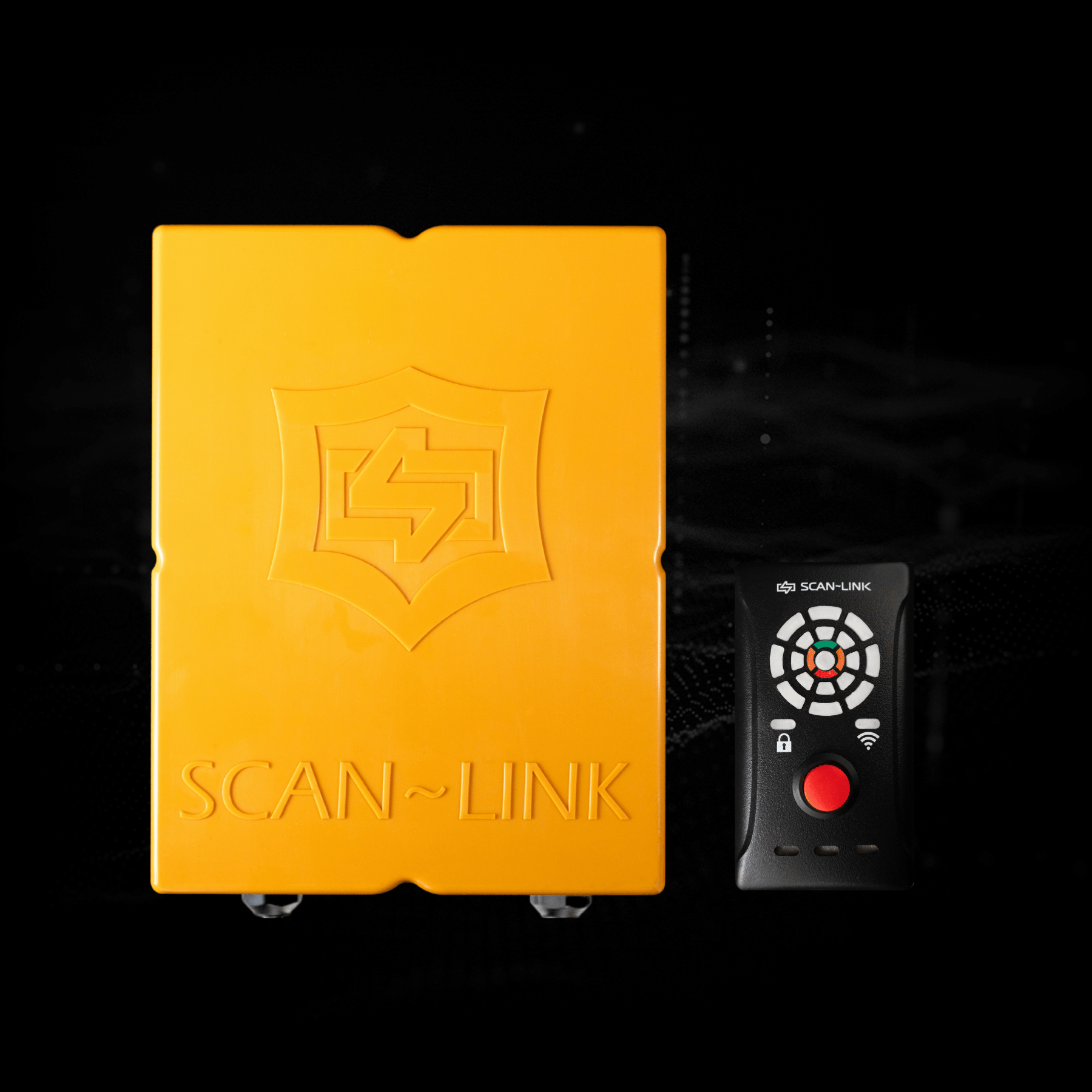

DISPLAY UNIT
The 3.0 Display Unit features an upgraded LED interface that provides clear, intuitive visibility of customizable detection zones, along with audible alerts to notify operators when workers are detected. Wirelessly connected to the antenna system, it performs continuous self-diagnostic checks to ensure reliable operation. The Display Unit also includes an Operator Mute function to prevent self-detection alerts while maintaining full detection of surrounding workers.
SPECS
- 10 RFID Tags per kit per Hard Hat
- Weatherproof, Sweat-proof
- UHF Passive
- Each Kit has a unique ID
- RFID Tag Mounting Strips (OPTIONAL)
EXTERNAL ALARM
The External Beeper Alarm is an essential accessory to the SCAN~LINK Armour System™. It is mounted on the outside of the mobile equipment to allow workers in the vicinity to hear a staccato alert warning on detection of a tagged worker in the danger zone.
SPECS
- Operating Voltage: +6VDC – +28VDC
- Temperature Range: -20°C – +65°C / -4°F – +149°F
- Sound Pressure: 95±5db(S) at 6VDC at 25°C / 77°F, 109±5dB(A) at 28VDC at 25°C / 77°F
MOUNTING BRACKET
The adjustable Antenna bracket has mounting holes on either side for securing the External Beeper Alarm. Simply unthread the washer from the alarm, insert the alarm into the mounting hole and thread the washer back on.
SPECS
- Maximum Angle: 90º
- Finish: Heavy Duty Powder Coating
We're Here to Support Your Safety Goals
Contact us to learn how SCAN~LINK’s passive RFID safety solutions improve safety and compliance, or request pricing and a detailed quote tailored to your jobsite.
