The SCAN~LINK 3.0 Armour System
The Next Generation of Passive RFID Worker Safety
LAUNCHES MID-SPRING 2026
SCAN~LINK 3.0 ARMOUR SYSTEM
Get an early look at SCAN~LINK’s 3.0 Armour System. Engineered for improved struck-by prevention, enhanced versatility, and reliable worker detection across all industrial and construction operations.
Longer Detection Range
Smaller Form Factor
Customizable Coverage
Full Coverage Protection
HOW SCAN~LINK'S ARMOUR SYSTEM WORKS
-
1. Simple Setup & Maintenance-Free
SCAN~LINK keeps it simple. Groundworkers are tagged with passive RFID tags in their vests or hard hats, while equipment is outfitted with SCAN~LINK hardware. Installation is fast, hassle-free. Our RFID tags are passive and requires no batteries, no maintenance, and are long lasting.
-
2. Real-Time Hazard Detection
The 3.0 Armour System allows for customizable detection zones, including full 360º coverage.
When a tagged worker enters the zone, operators receive clear audio and visual alerts, while external alarms warn the worker. The 3.0 system’s improved range and reliability ensure consistent detection, even in challenging environments.
-
3. Actionable Safety Data & Analytics
Transforms detection events into actionable reports, with an optional integrated telematics interface. Each SCAN~LINK tag features a unique ID that can be assigned to an employee or asset, enabling user-friendly data analytics and driving informed, actionable decisions.
Featured Reports Include:
- Heatmap
- Detection Map
- Detections by Employee
- Detections by Equipment
Customizable with manual and automated report options.
NEW 3.0 ARMOUR SYSTEM COMPONENTS
New 3.0 Antenna Models
The 3.0 Armour System offers three antenna models engineered for maximum flexibility. From compact installations to extended range and fully customizable coverage, each option is built for durability and reliable performance in low-visibility conditions including dust, fog, rain, and harsh industrial environments.

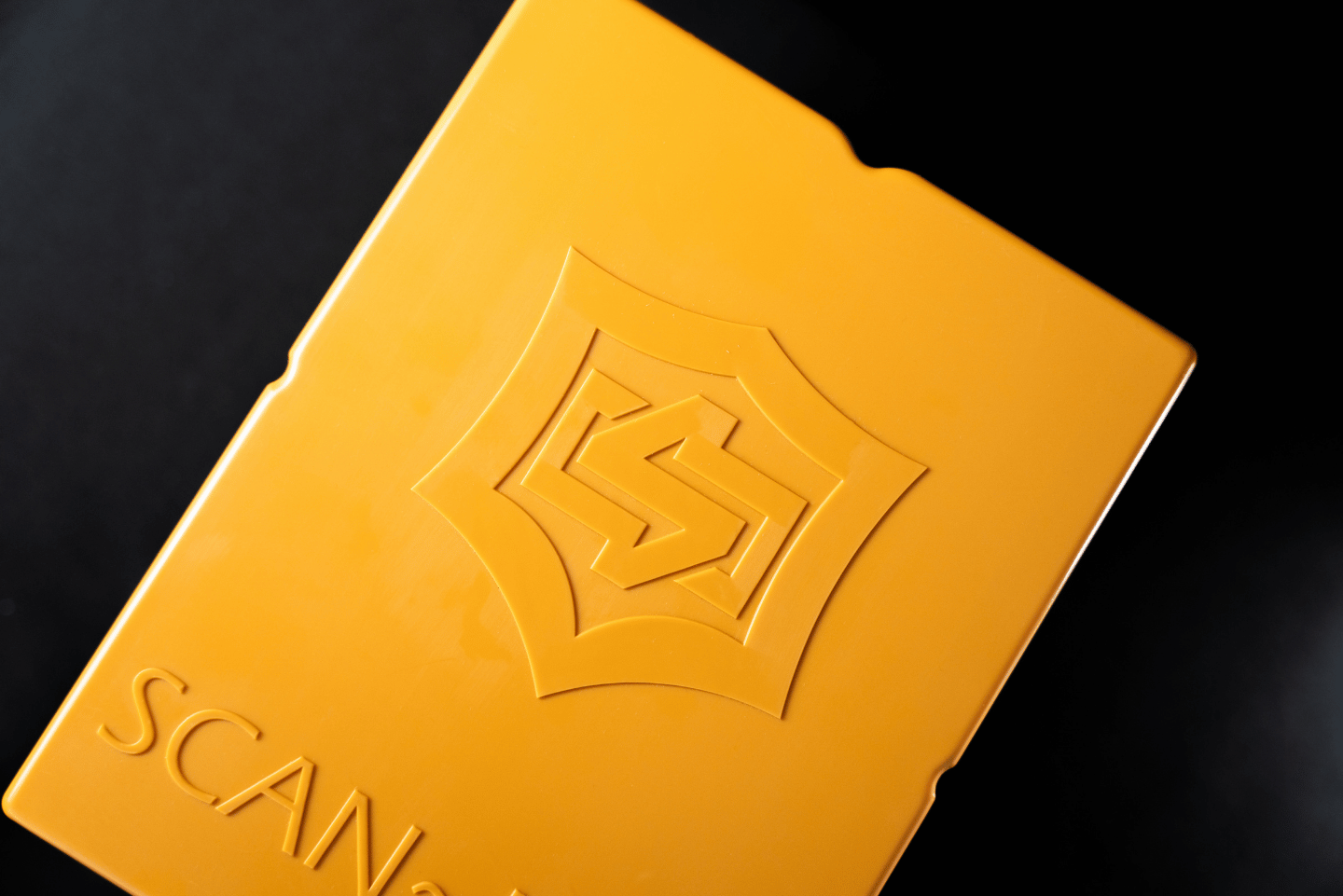

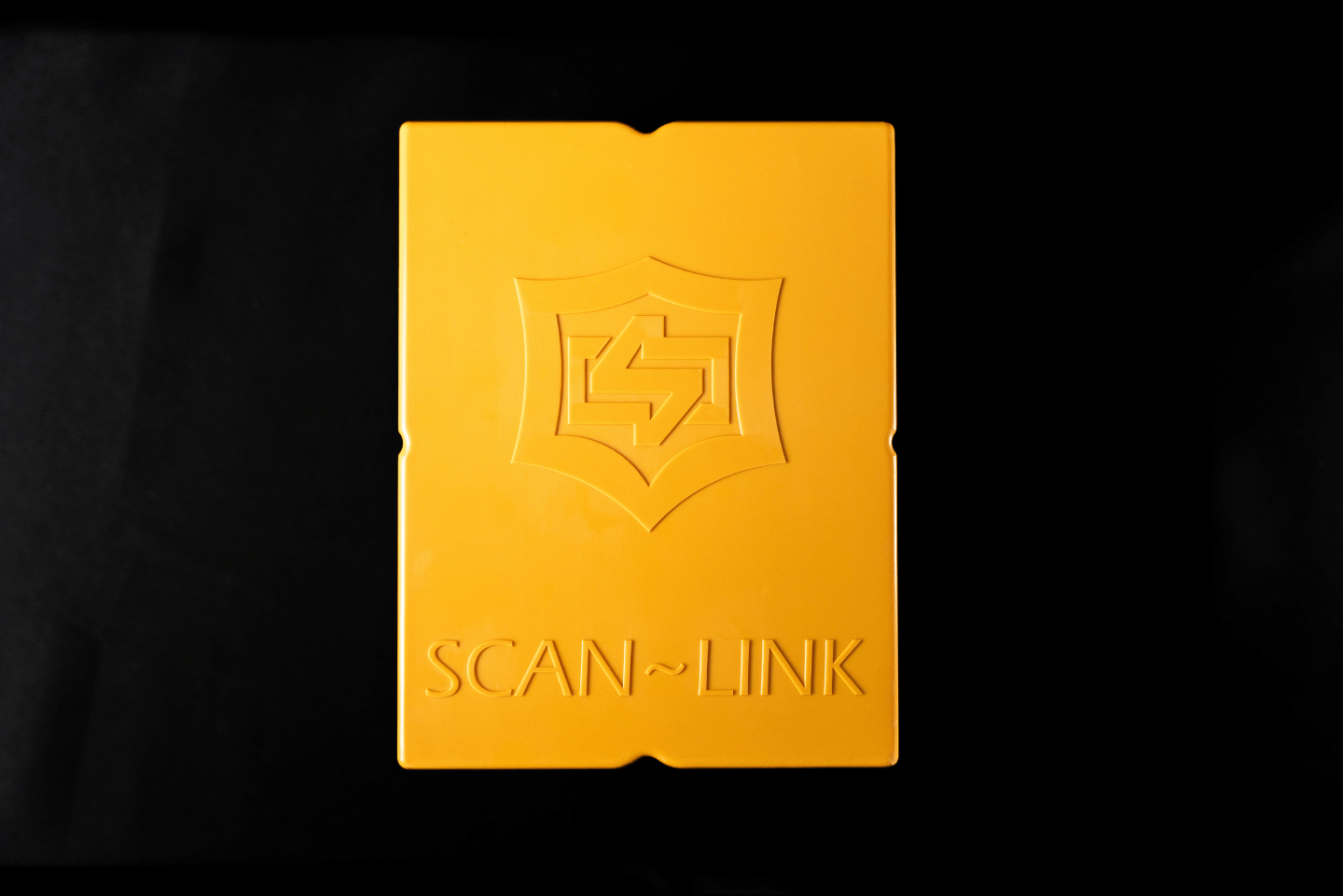

3.0 Antenna Unit
STANDARD RANGE
The new Standard Range Antenna features a redesigned, compact form factor while delivering improved passive RFID detection performance. It is ideal for most equipment applications.

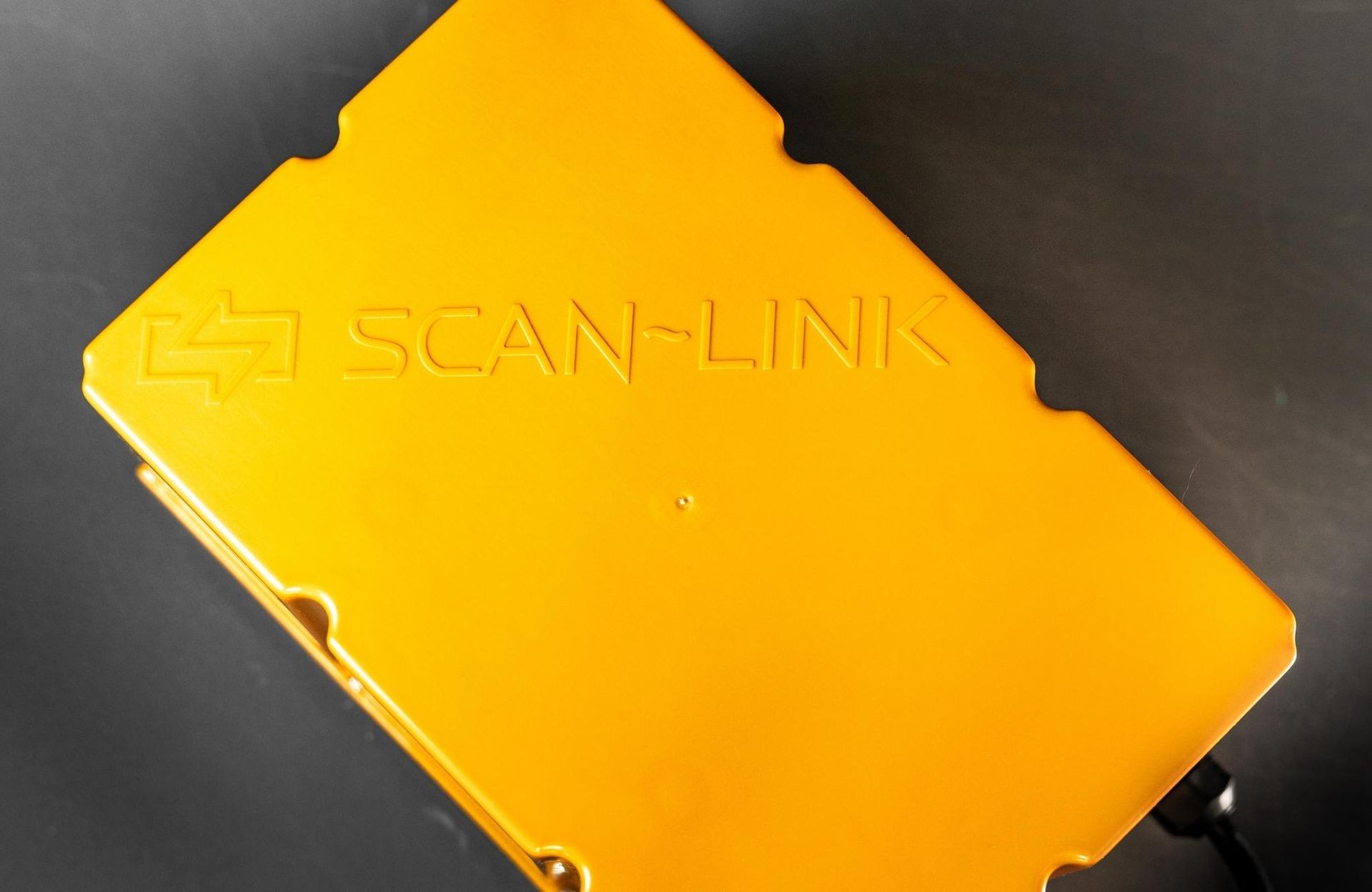

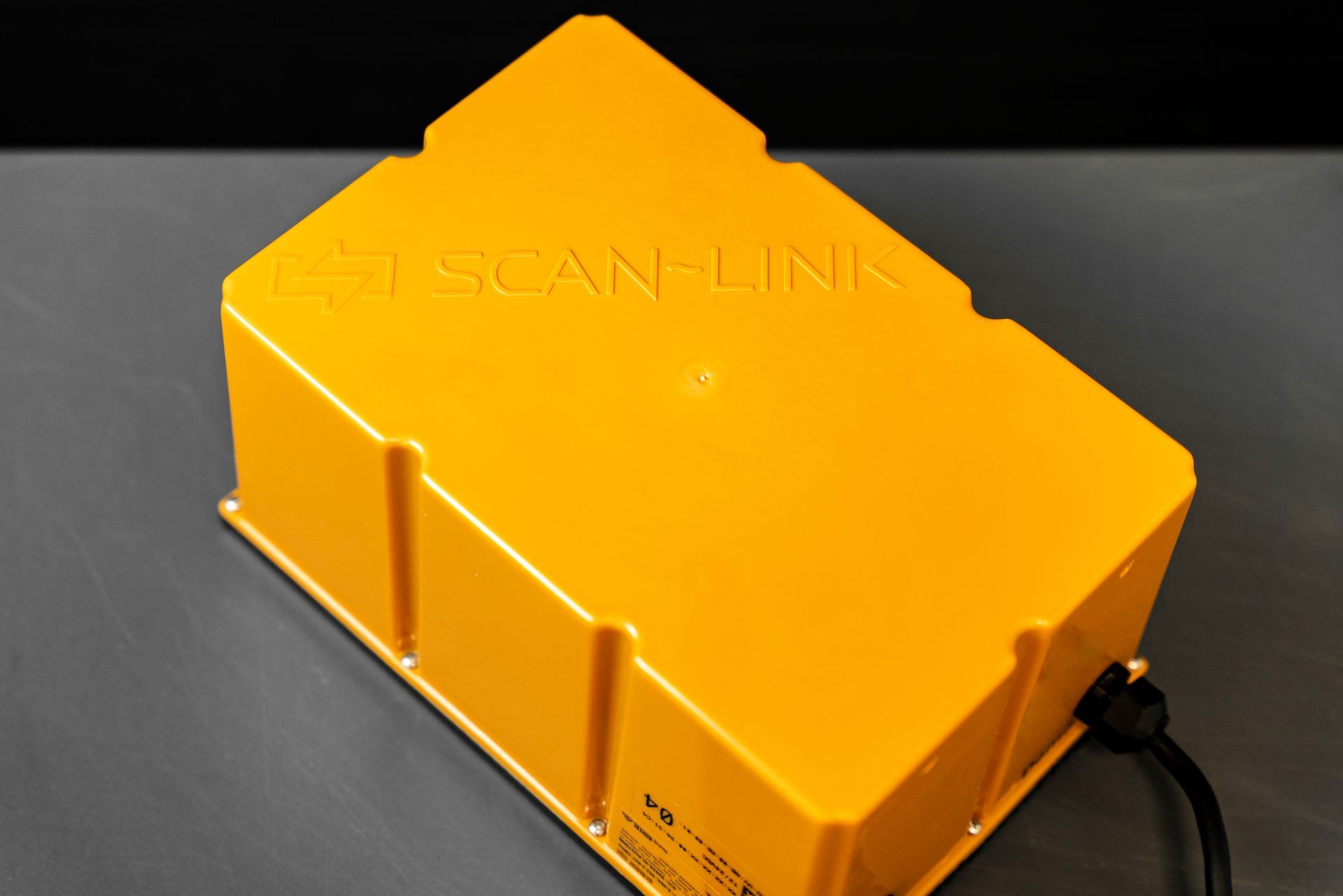

3.0 Antenna Unit
LONG RANGE
The Long Range Antenna combines the proven enclosure design of the 2.0 system with upgraded 3.0 internal technology to deliver extended detection capabilities of 40+ feet for larger equipment and expanded safety zones.

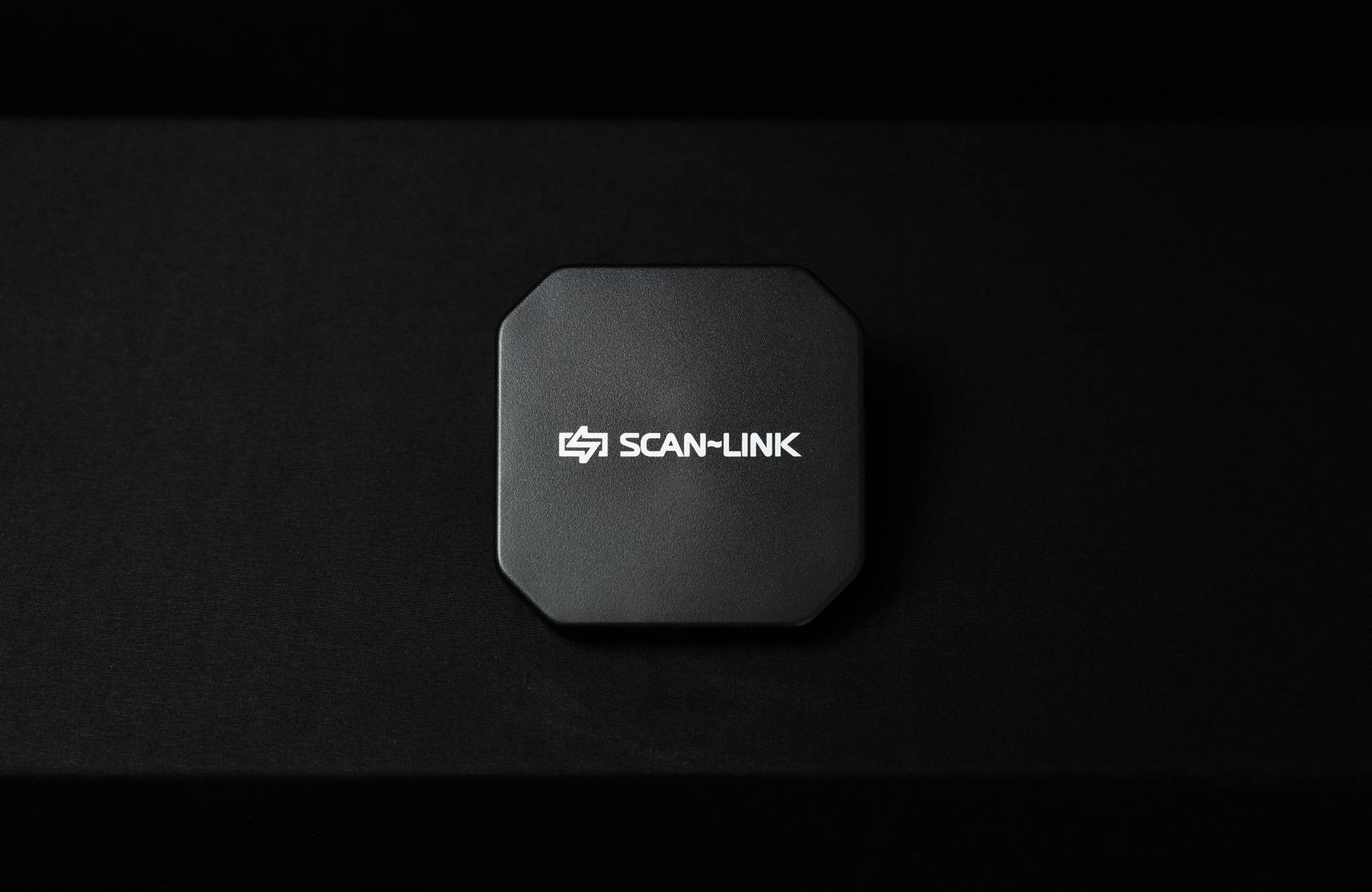

3.0 Antenna Unit

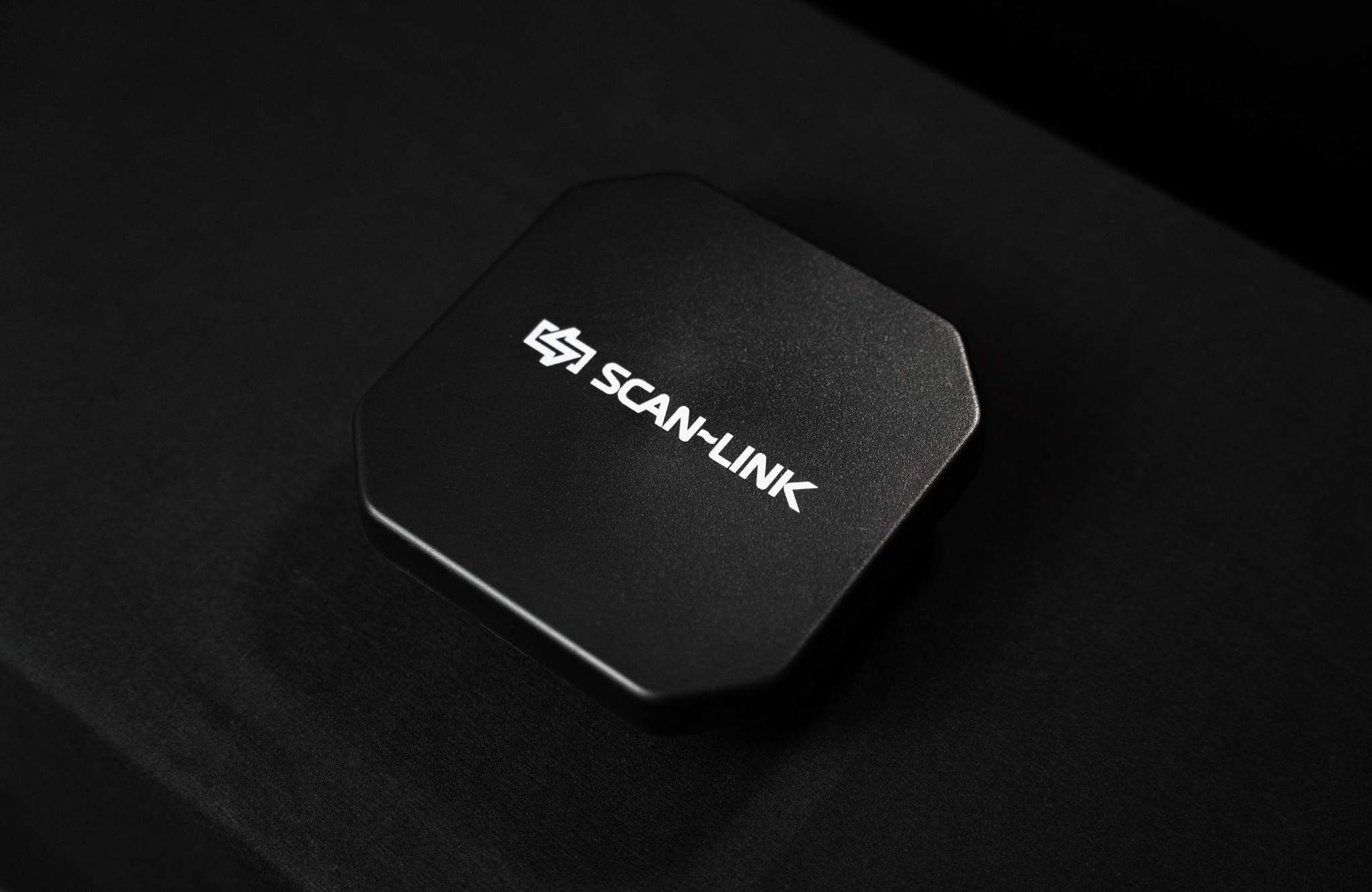

COMPACT ANTENNA
The Compact Antenna is a smaller-format antenna designed for full coverage detection and customizable multi-antenna layouts, ideal for tight-clearance environments.

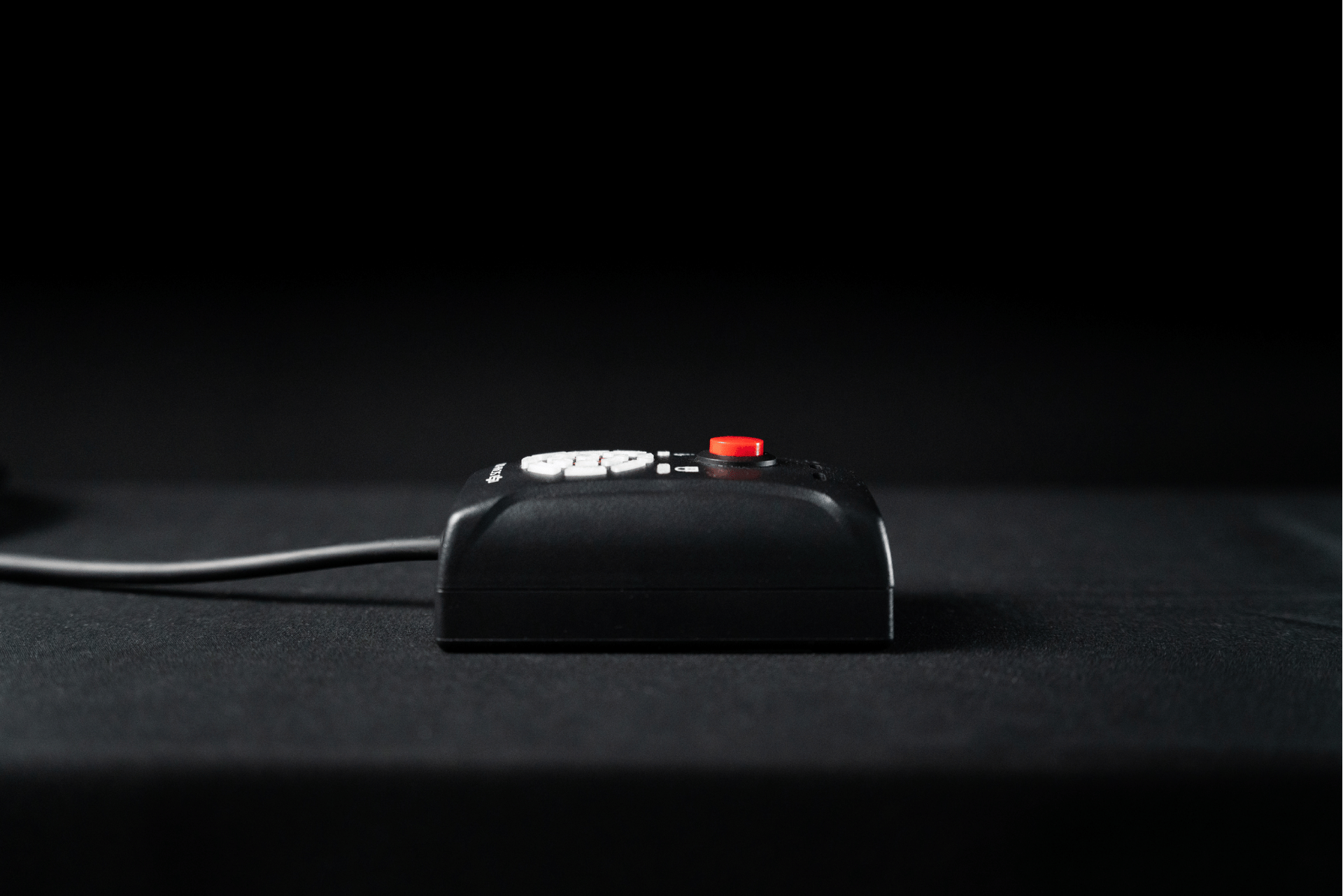

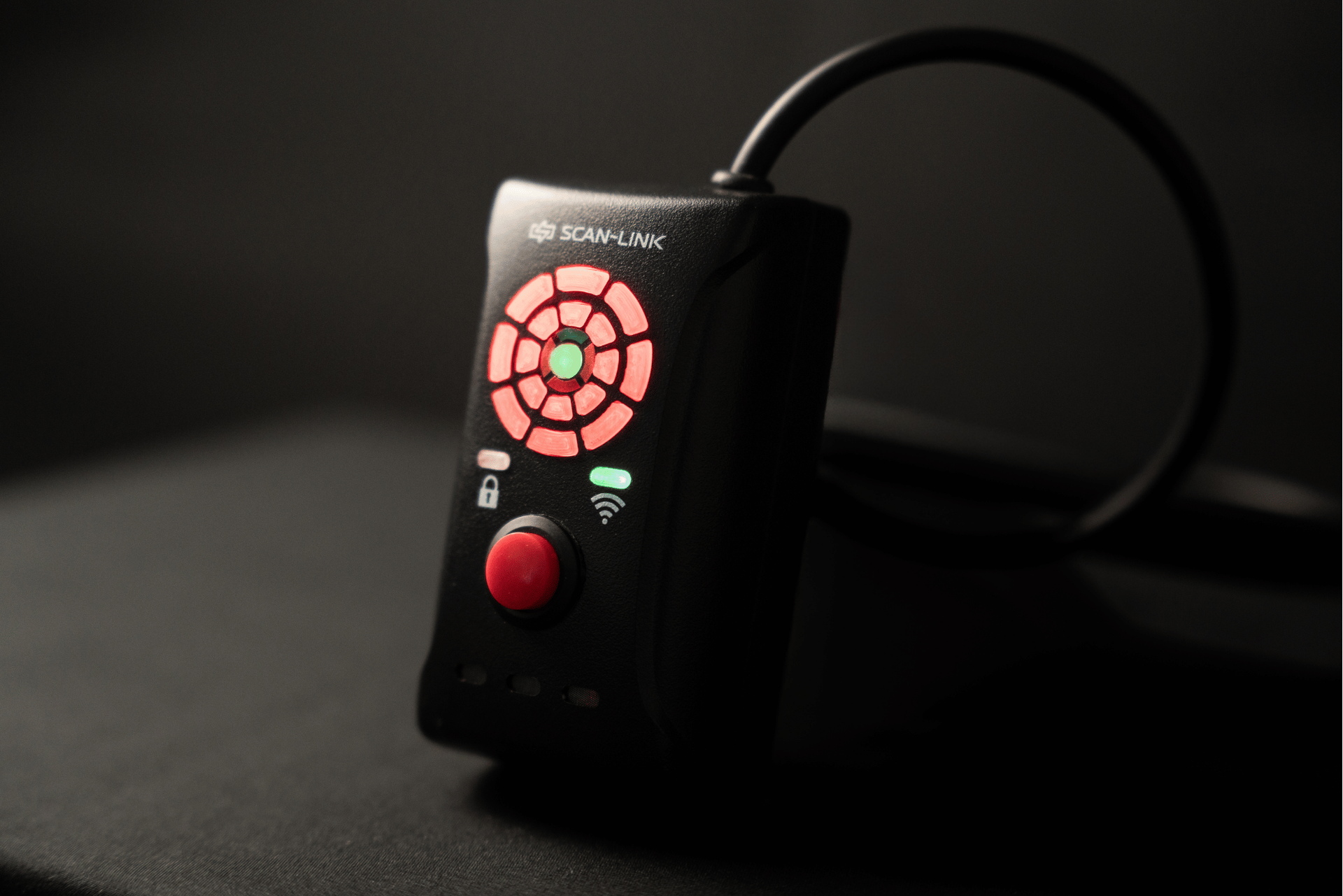

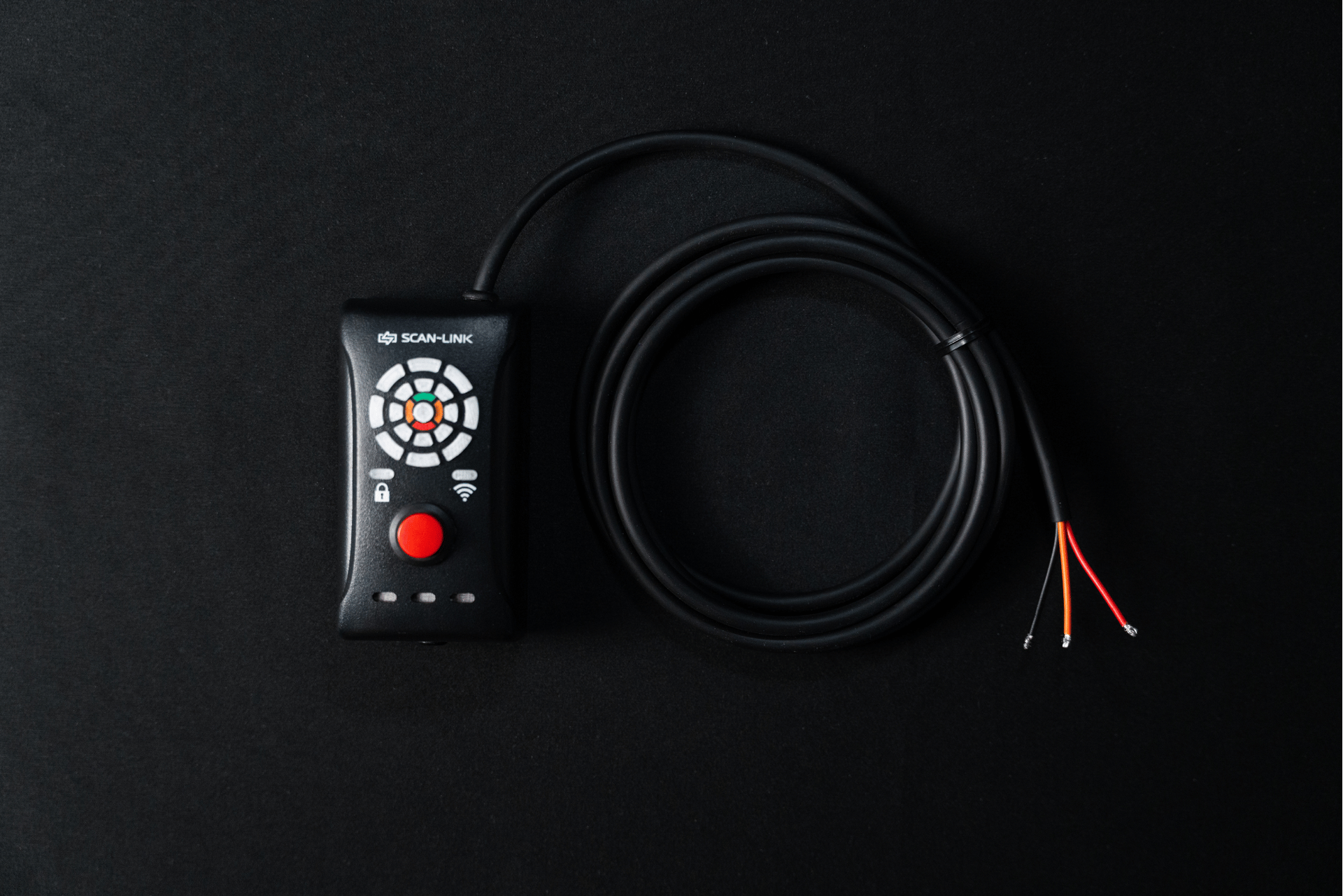

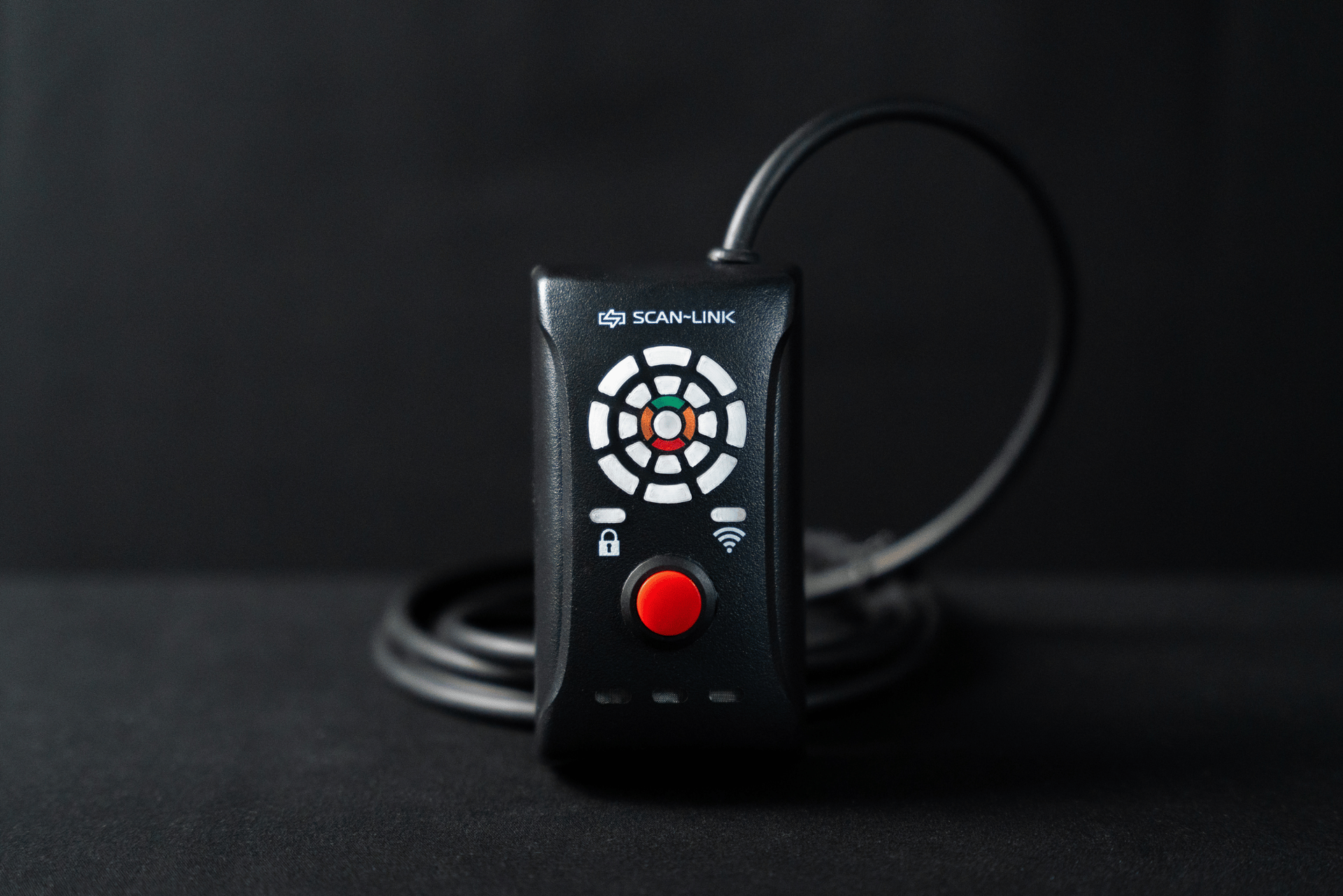

New 3.0 Display Unit

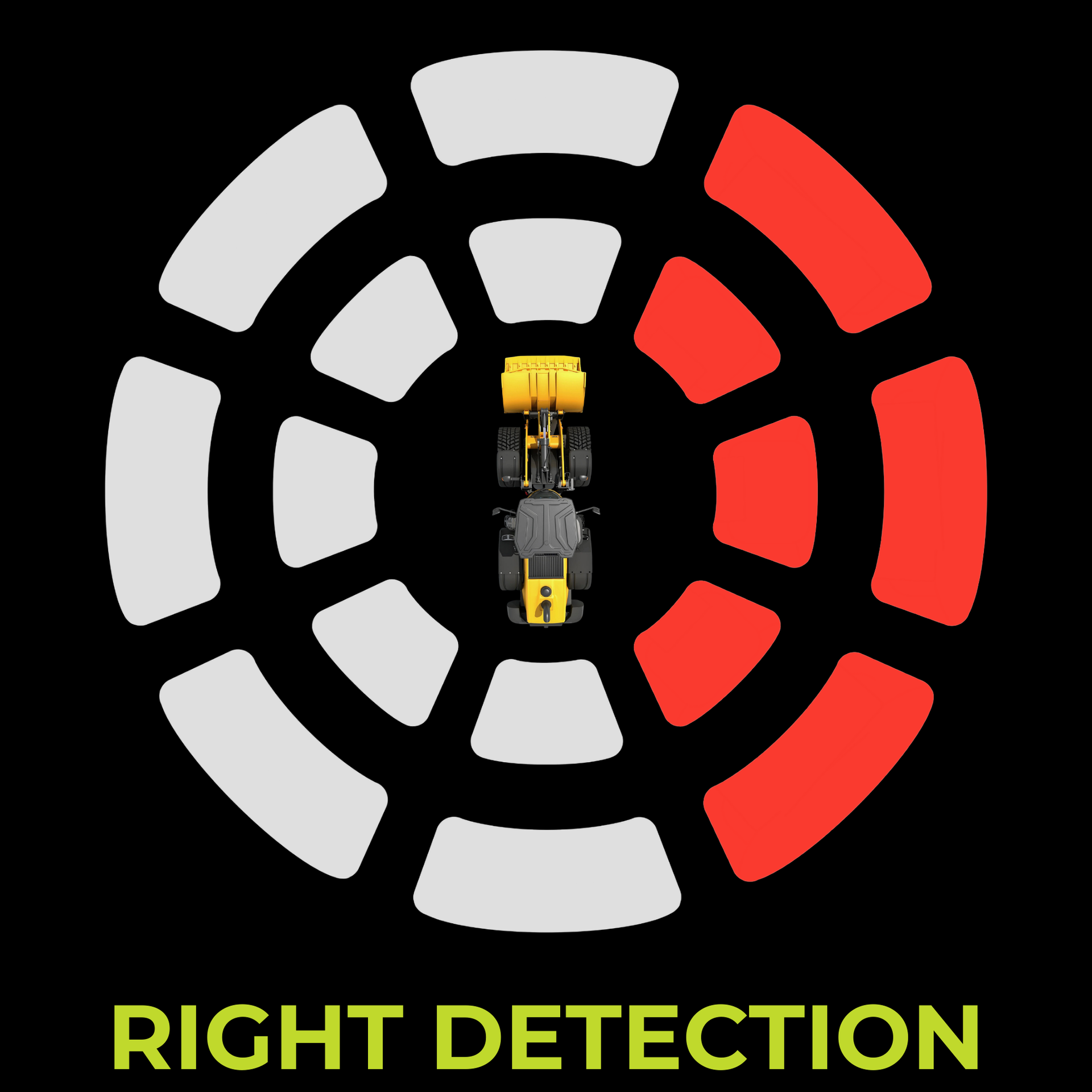

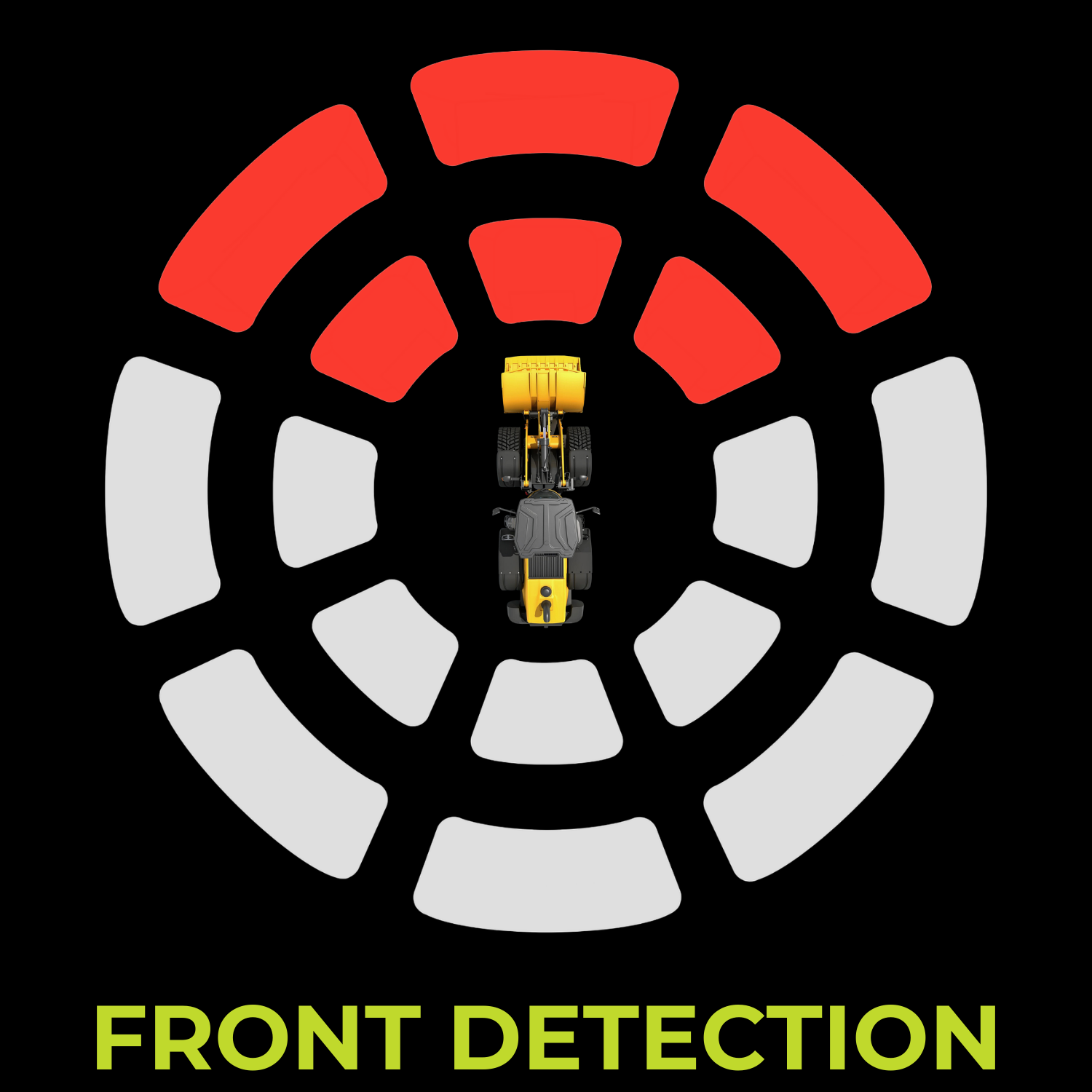

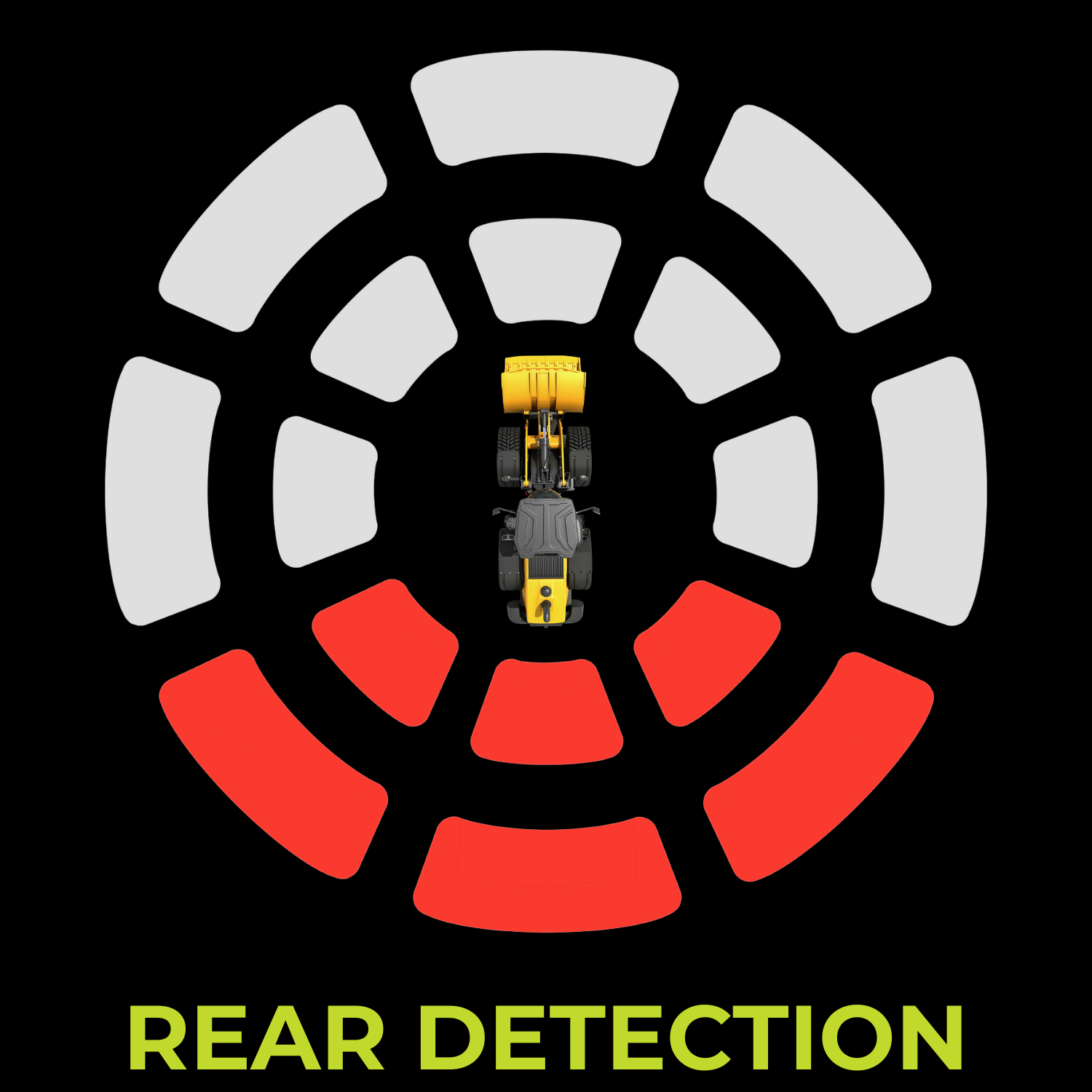

The 3.0 Armour System’s Display Unit delivers audible and visual alerts with a fully redesigned interface. Its intuitive circular LED layout supports full coverage directional detection, lighting up to show in which zone a tagged worker is detected.
Key Benefits
- Circular LED interface that represent the detection zones around the machine
- Audible & visual alerts for operator awareness
- Improved user interface for simplified operation
- Customizable LED display options for multi-antenna layouts
- Designed for reliable performance in demanding worksite environments
- Adjustable audio volume
- Operator mute function
- Wireless communication to Antenna
- Continuous self-monitoring technology with real-time error notifications
3.0 Control Box
The new Control Box serves as the central hub for multi-antenna configurations, simplifying complex deployments and ensuring seamless system performance.
- Optional integrated Telematics Interface Unit
- Wireless communication to In-Cab Display Unit
- Continuous self-monitoring
- Operating Temperature: tested and QC'd to -40ºC to +85ºC
ARMOUR SYSTEM 3.0 vs 2.0:
Upgrades in Passive RFID Safety Technology
Compare our 3.0 Armour System with the previous 2.0 System to see how our next-generation passive RFID technology streamlines design, delivers longer range, offers full detection coverage options with multiple antennas, and improves worker safety in industrial worksites.
ANTENNA UNIT
Key Changes From 2.0:
- Up to 4 Antennas for full detection coverage
- Increased detection range
- Smaller, more compact form factor
- Expanded customizable coverage around heavy machinery
- Optional integrated telematics interface unit

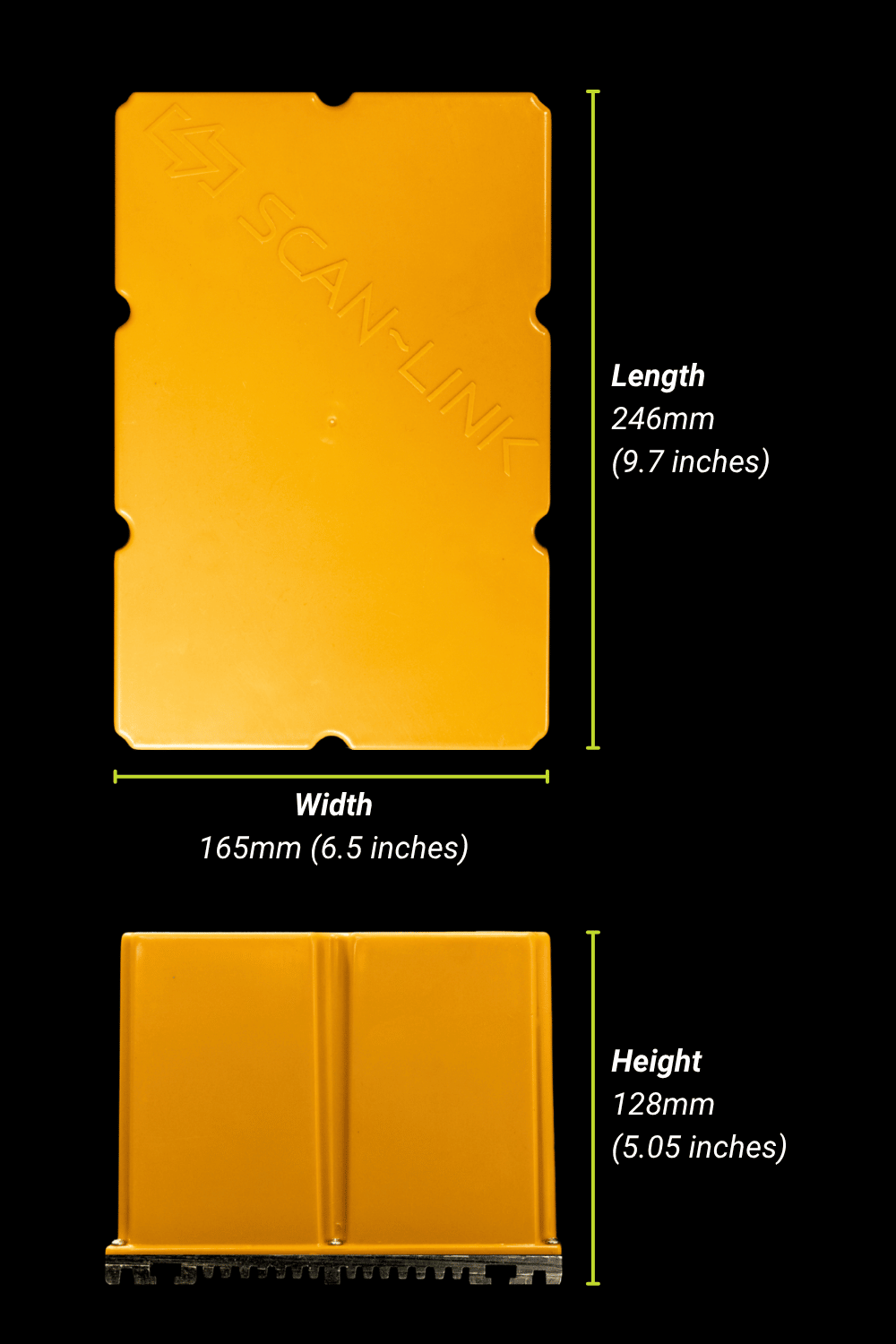

2.0 Antenna Dimensions

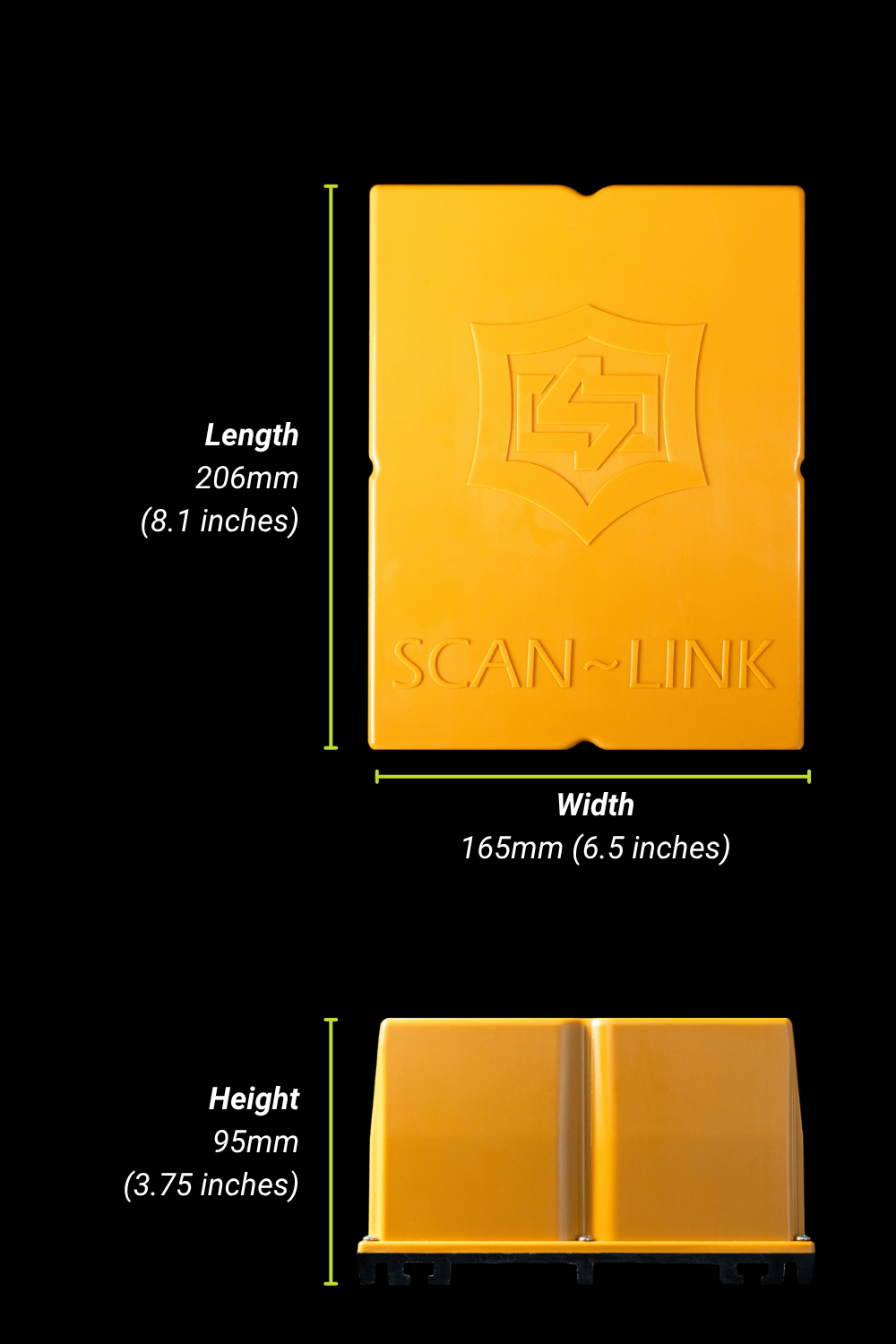

3.0 Antenna Dimensions
DISPLAY UNIT
The new SCAN~LINK 3.0 Display Unit was completely redesigned from the ground up and improves upon the previous 2.0 In-Cab Display Unit.
Redesigned LED Display
- Supports full coverage for worker detection and protection
- Intuitive circular LED design allows the operator to know where the detection takes place

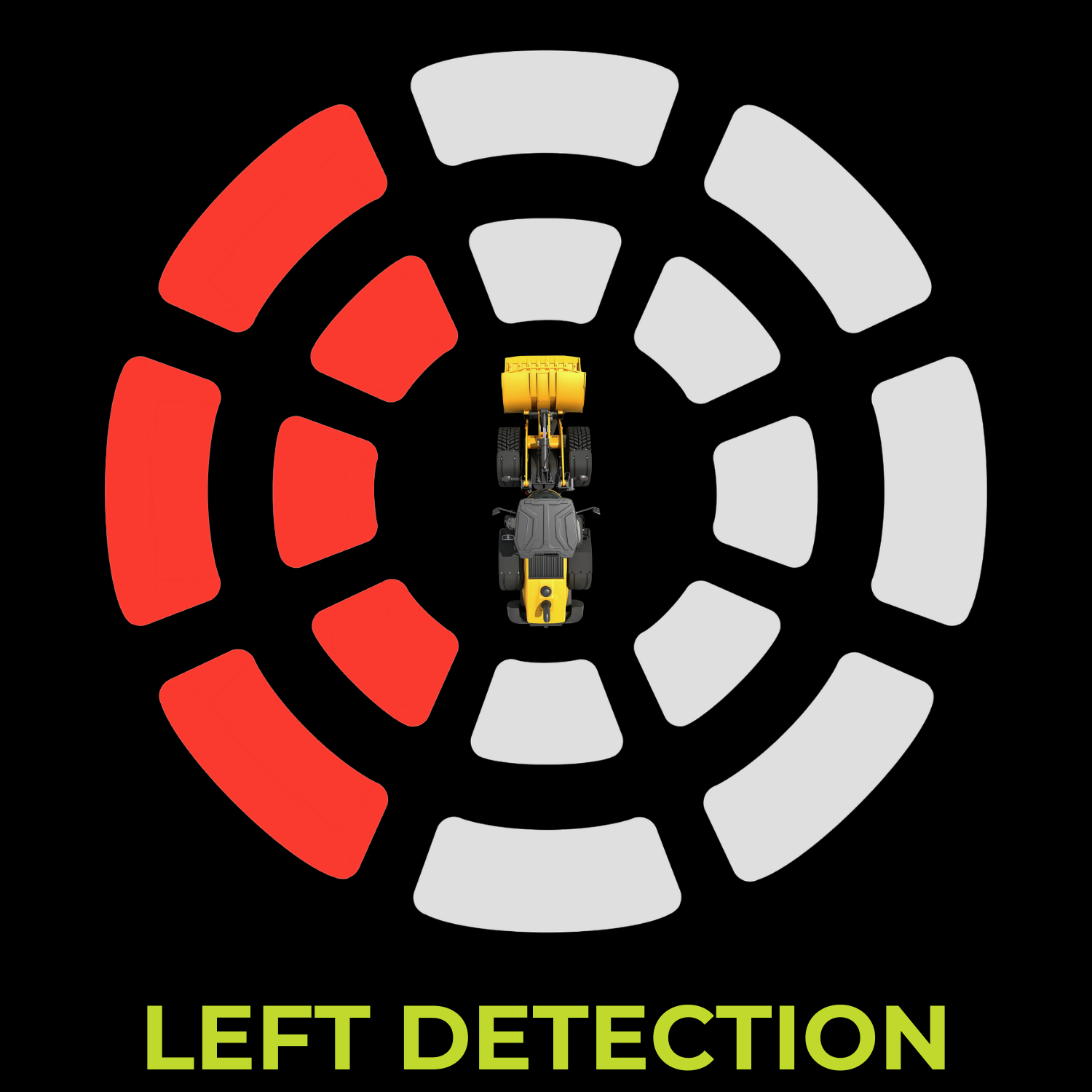

Example of a Quad Node (Full Coverage) Setup
Operator Mute Function
The Operator Mute Function serves as a solution to eliminate self-detection events of the equipment operator:
- Eliminates nuisance self-detection alerts inside the cab
- Maintains full detection of surrounding workers
- Auto resets on power cycle
- System will only mute one worker's apparel at a time
COMING SOON
3.0 RELEASES MID-SPRING 2026
The future of personnel safety is almost here.
